Tehnomarket ALUMINIK CS55
[aluminium system for glass facades]

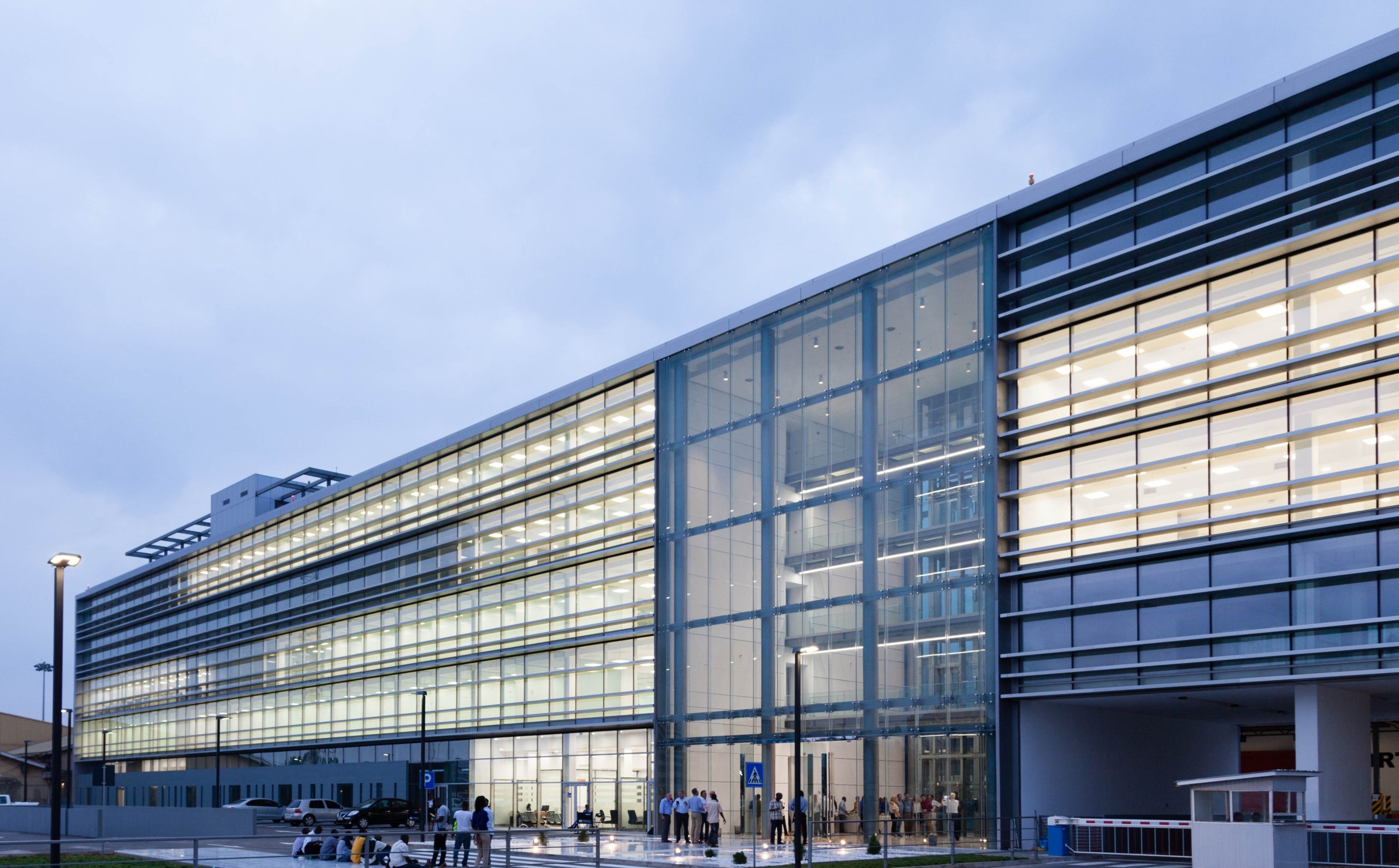

Designed and developed by Tehnomarket, the ALUMINIK series represents a new generation of aluminium curtain wall systems engineered to meet the highest standards of architectural design, energy efficiency, and building performance. Based on a versatile 55 mm visible profile platform, ALUMINIK combines slim sightlines, structural reliability, and advanced thermal insulation to create transparent and visually striking building envelopes.
The ALUMINIK series offers three façade configurations—Continual, Structural, and Combined—allowing architects to select the ideal balance between aesthetics, performance, and design flexibility. Compatible with double and triple glazing, insulated façade panels, integrated windows, doors, and concealed opening vents, the system supports a wide range of architectural concepts, from elegant glass façades to highly energy-efficient commercial and public buildings. With extensive configuration possibilities and proven technical performance, ALUMINIK provides a comprehensive solution for contemporary façade design.
ABOUT THE SYSTEM
Features
- 55 mm visible profile width for slim and elegant façade aesthetics
- Compatible with vertical façades, inclined façades, skylights, and roof lanterns
- Supports integrated windows, doors, and concealed structural opening vents
- Extensive system flexibility with multiple profile depths and over 25 façade appearance variations
SUBSYSTEMS
ALUMINIK [cs55 continual]
 |
|

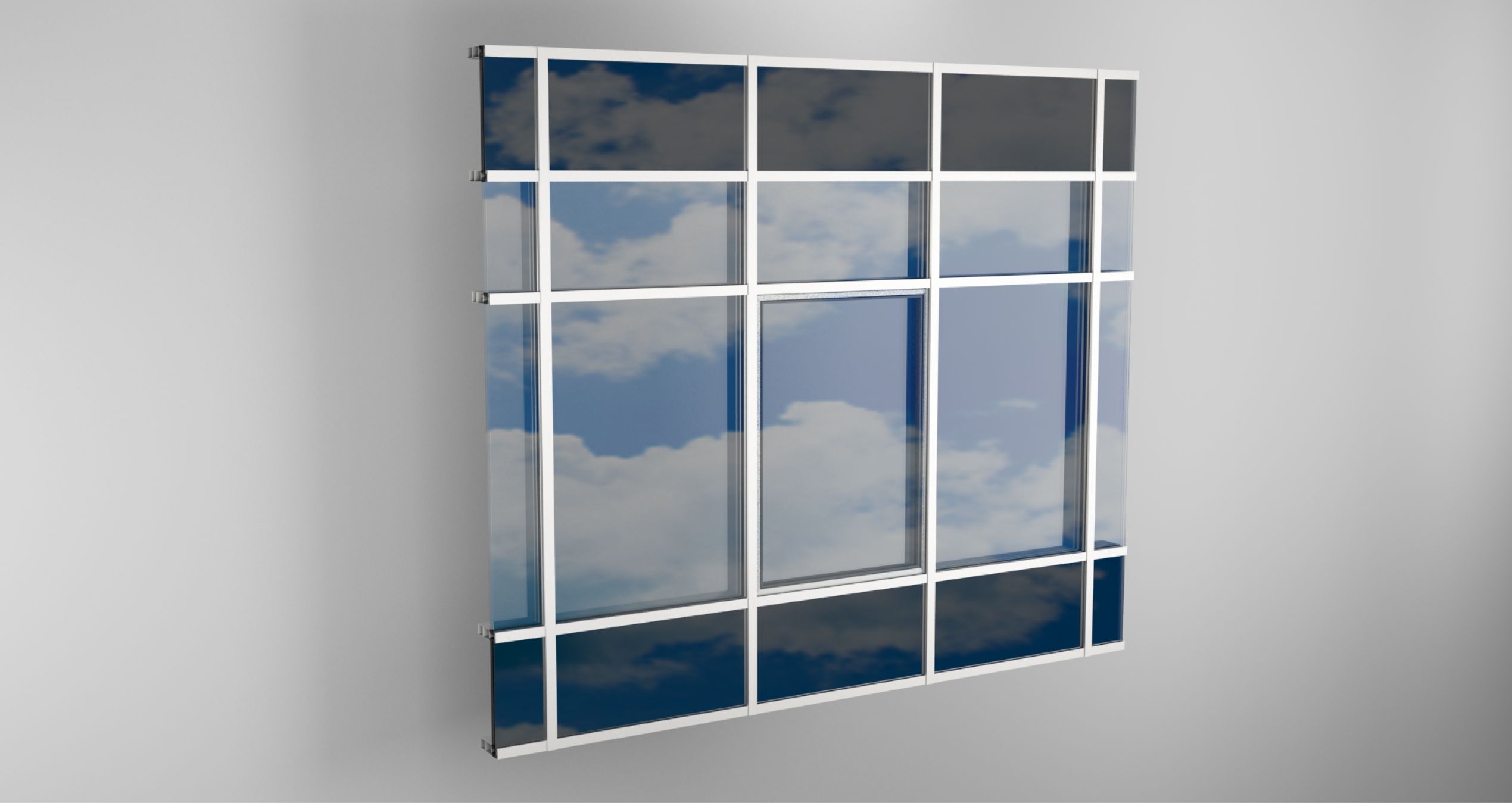

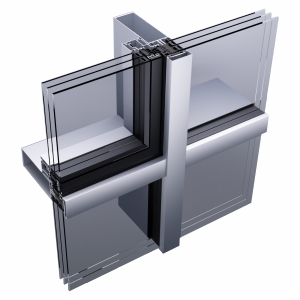

ALUMINIK CS55 Continual is a thermally insulated curtain wall system characterized by clearly defined horizontal and vertical façade lines formed by external pressure plates and cover caps. These visible aluminium elements securely fix glazing units to the primary mullion-and-transom structure while creating a distinctive architectural rhythm that emphasizes the geometry of the building envelope.
The system offers extensive design flexibility through a wide selection of cover cap profiles, enabling the creation of diverse façade appearances while maintaining excellent thermal and weather-performance characteristics. Compatible with double and triple glazing units, ALUMINIK CS55 Continual achieves curtain wall performance values of up to Ucw = 0.64 W/m²K, making it suitable for energy-efficient residential, commercial, and public buildings.
ALUMINIK [cs55 structural]
 |
|

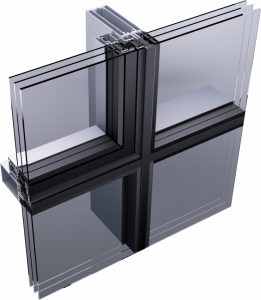

ALUMINIK CS55 Structural is a thermally insulated curtain wall system distinguished by its minimalist all-glass appearance, with no visible external profiles used for glazing retention. Glass panels are fixed to the primary aluminium mullion-and-transom structure using fully concealed fastening elements, while joints between adjacent panes are sealed with durable elastic gaskets or structural silicone, creating a seamless glazed surface.
By combining advanced façade engineering with refined architectural aesthetics, the system delivers the clean, transparent appearance demanded by contemporary architecture while maintaining excellent thermal and weather-performance characteristics. Integrated structural opening vents further enhance functionality without disrupting the uniform glass façade appearance.
ALUMINIK [cs55 combined]
 |
|

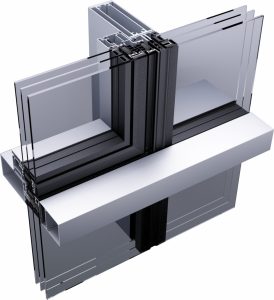

ALUMINIK CS55 Combined is a thermally insulated curtain wall system that merges the visual characteristics of continual and structural façades within a single façade solution. The system features visible horizontal cover caps that emphasize the façade’s horizontal lines, while vertical glazing joints remain structurally bonded, creating a clean and dynamic architectural appearance.
This hybrid configuration provides architects with extensive design freedom, enabling the creation of distinctive façade compositions while preserving the technical advantages of both systems. Compatible with double and triple glazing units, ALUMINIK CS55 Combined delivers excellent thermal performance and supports the integration of standard windows, doors, and structural opening vents within the façade envelope.
