Tehnomarket SLIDE
[aluminium system for sliding and lift&slide elements]
The Tehnomarket SLIDE series comprises three aluminium sliding systems developed for the fabrication of sliding windows and balcony doors, offering solutions for a wide range of architectural and construction requirements. Available in both thermally broken and non-thermally broken configurations, SLIDE systems can be specified for various climatic conditions and are suitable for both exterior and interior applications.
The product family includes systems with varying levels of thermal performance, allowing architects and investors to select the optimal balance of energy efficiency, aesthetics, and functionality for each project.
SLIDE H28 is designed for applications in mild climates and interior spaces where thermal insulation requirements are limited. As a non-thermally broken system, it accommodates single and double glazing while providing a cost-effective and reliable sliding solution.
SLIDE T45 is developed for projects with increased insulation requirements. The system incorporates polyamide thermal breaks and supports double-glazed configurations, delivering improved thermal performance and occupant comfort.
SLIDE T67 represents the most advanced solution within the SLIDE family. Engineered for demanding energy-efficiency requirements, the system combines wider polyamide thermal breaks with additional insulating foam inserts within the profile structure. It accommodates both double and triple glazing, providing superior thermal insulation and performance for contemporary residential and commercial buildings.
ABOUT THE SYSTEM
Features
Available in 2-track and 3-track configurations, with or without thermal break
- Exceptional design flexibility with support for up to six sliding and fixed panels
- Designed to accommodate large-format glazing and maximize natural light
- Advanced functionality through integrated retractable insect screens, flush threshold solutions, and optional lift-and-slide operation
SUBSYSTEMS

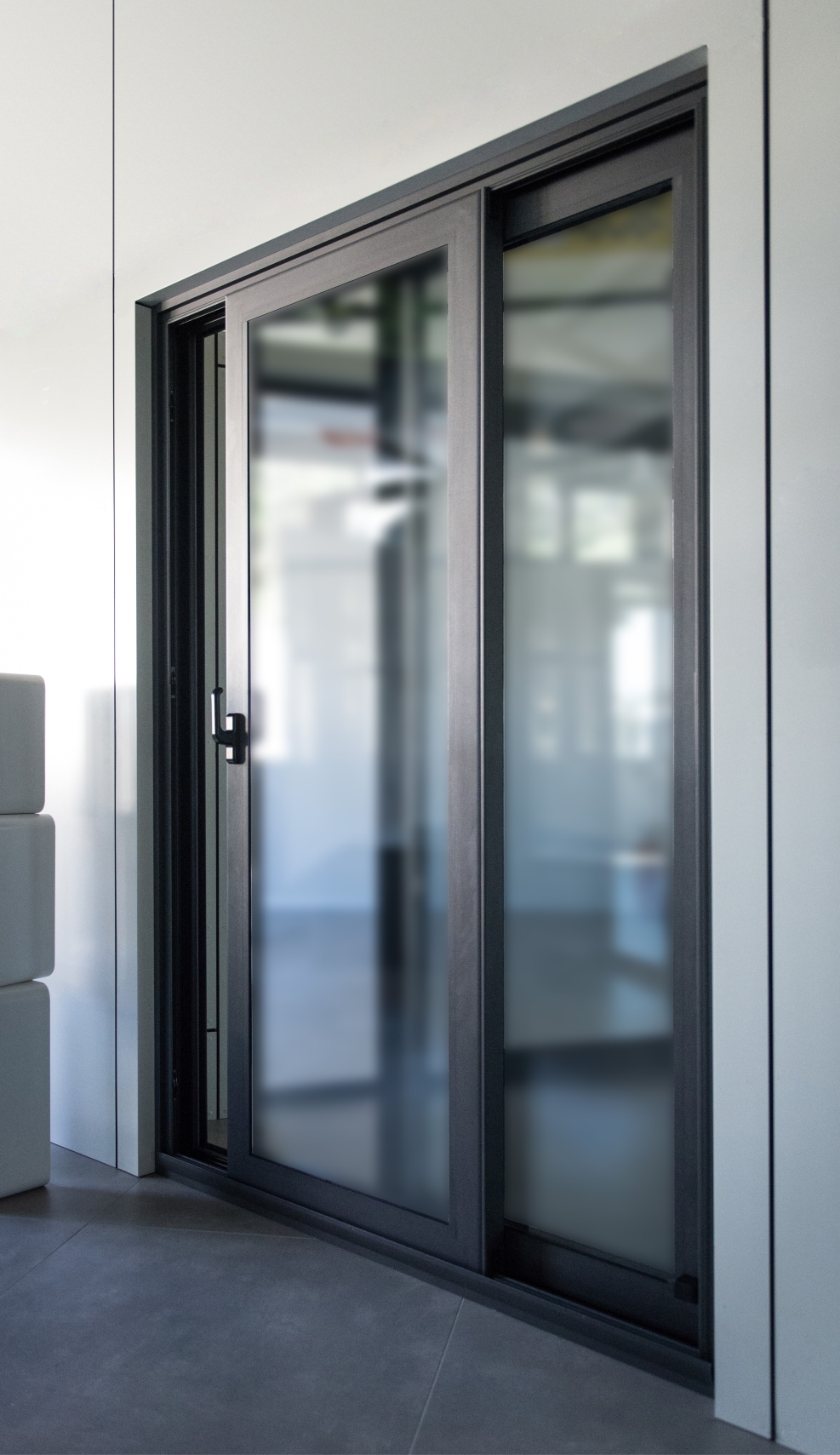

SLIDE [t67]
 |
|
SLIDE T67 is Tehnomarket’s advanced aluminium sliding system developed for projects where energy efficiency, large glazed surfaces, and architectural freedom are key design requirements. Suitable for a wide range of residential and commercial applications, the system offers exceptional flexibility in the design of sliding windows and balcony doors while maximizing natural daylight and creating seamless connections between interior and exterior spaces.
The system supports both two-track and three-track configurations, accommodating opening schemes ranging from two-panel to six-panel arrangements. For enhanced accessibility and user comfort, SLIDE T67 can be specified with a flush threshold solution featuring a cover profile for easier passage. Sliding sashes with a profile depth of 67 mm can be equipped with either conventional sliding hardware or an advanced lift-and-slide mechanism, ensuring smooth operation even for large and heavy glazed elements.
With thermal performance values of up to Uf = 2.4 W/m²K and Uw = 1.0 W/m²K, SLIDE T67 represents an ideal solution for contemporary architecture and modern energy-efficient buildings.
SLIDE [t45]
 |
|
SLIDE T45 is Tehnomarket’s thermally broken aluminium sliding system developed for the fabrication of sliding windows and balcony doors in both residential and commercial buildings. Suitable for applications of various dimensions, the system combines reliable thermal performance with architectural flexibility, enabling the creation of large glazed openings that maximize natural light and enhance visual connectivity between interior and exterior spaces.
The system supports both two-track and three-track configurations, accommodating opening schemes ranging from two-panel to six-panel arrangements. As an additional feature, SLIDE T45 can be equipped with an integrated insect screen positioned within the outer sliding frame. Sliding sashes with a profile depth of 45 mm can be fitted with either conventional sliding hardware or an advanced lift-and-slide mechanism, ensuring smooth and comfortable operation.
With its combination of thermal insulation, functionality, and design versatility, SLIDE T45 provides an ideal solution for contemporary architectural projects characterized by expansive glazed surfaces and modern façade aesthetics.
SLIDE [h28]
 |
|
SLIDE H28 is Tehnomarket’s non-thermally broken aluminium sliding system developed for the fabrication of sliding elements in a wide range of dimensions. The system is primarily intended for geographical regions where high thermal insulation values are not required, as well as for terrace enclosures and interior partition applications. Thanks to its contemporary design and slim profile geometry, SLIDE H28 integrates seamlessly into residential and commercial environments of various types.
The system supports both two-track and three-track configurations and accommodates up to six sliding panels, providing a high degree of flexibility in architectural design. An optional external insect screen can also be integrated into the system. The elegant sash profile, with an installation depth of just 28 mm, supports single and double glazing configurations up to 20 mm thick and is equipped with standard sliding hardware. These characteristics make SLIDE H28 an efficient and cost-effective solution for creating transparent glazed surfaces and strengthening the visual connection between interior and exterior spaces.
